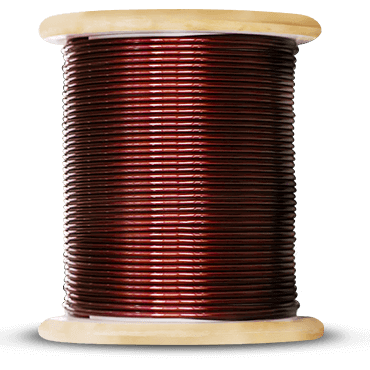

Enameled Round Aluminum Wire

DiameterRange (mm): 0.06-10.0mm;AWG:1-52
Temperature Class (C): 130, 155, 180, 200, 220
Standard: IEC, NEMA, GB, JIS
Color: natural color, red, blue, green and so on

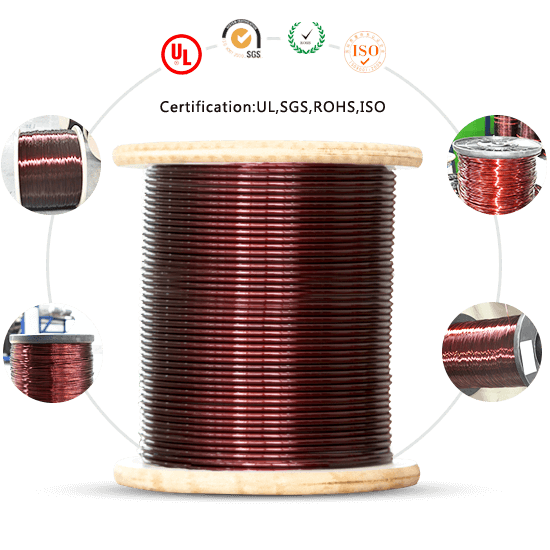

UL NO: E345303
Package: PT-25 PT-30 PT-60 PT-90 PT-200,PT-270, wooden bobbin and according to customer requirements

We're here to help:Easy ways to get the answers you need.

Send e-mail Get Price

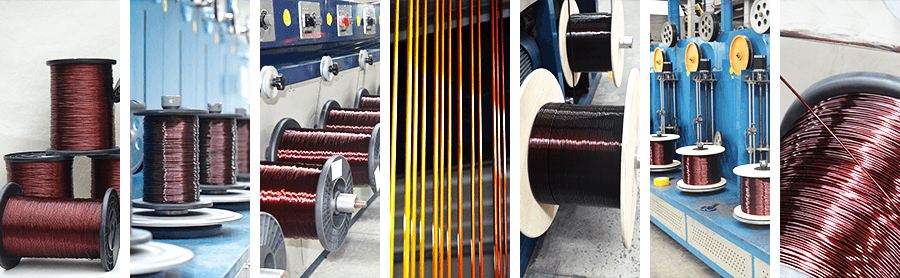

Production Process: Extrude & Draw Stretch the Thread Ultrasonic Clean; Panit Toast Spool

Size: 0.2-8.0mm (AWG 32 – AWG 1)
Thermal Class:130,155,180,200,220

Main Products:: Class 130 Polyester Enameled Round Aluminum Wire; Class 155 Modified Polyester Enameled Round Aluminum Wire; Class 180 Polyesterimide Enameled Round Aluminum Wire; Class 200 Polyesterimide Enameled Round Aluminum Wire; Class 200 Polyamide-imide Enameled Round Aluminum Wire; Class 220 Polyesterimide Enameled Round Aluminum Wire

Other Names:: Enameled Aluminum Winding Wires; Enamel Insulated Aluminum Wire; Double Enameled Aluminum Wire

Production Characteristics

1.Appearance: light brown/Purplish, Smooth and bright, free from lacquer wart.
2.The material of Enameled aluminum wire: Drawing or extruding bare aluminum wire confirm to national standard.smooth surface,no defects Good perfoamance insulation enamel,polyester or polyester-imide over coated with Polyamide-imide.
3. Enameled aluminum wire is more easily to be coils than enameled copper wire. Because of having a solid layer of oxidation film, enameled aluminum wire have better insulativity and longer life length.
4. Enameled aluminum wire’s flame-retardant level is B, so it has good better shielding effectiveness and high mechanical property.
5. The biggest advantage of aluminum wire is its weight. It is three times as light as copper wire. so it can reduce cost. And it has better adhesion, so it can reduce transportation expenses and add value-added.
6. Our enameled round aluminum wire has good heat resistance, chemical corrosion resistance ,transformer oil resistance, low temperature resistance radiation resistance, good stability, good mechanical properties.
Insulation: ELANTAS
Maximum size :8.0mm
Intelligent on-line monitoring equipment

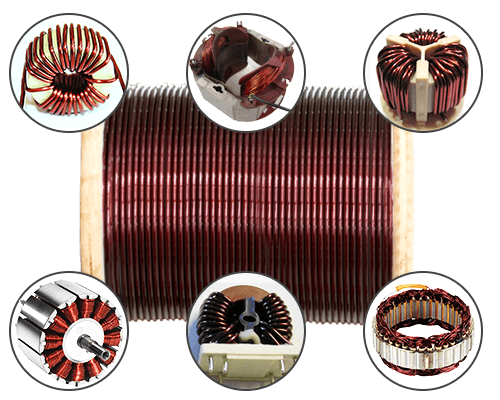

Application: The Application Of enameled round aluminum wire
Typical application include:
Transformer/Generator/Refrigerating system/Heat-resistant motor/UPS power source

Packing: Plastic spool or wooden spool, flat wire length are customizable;
The usual spool specifications :
PT-25,PT-30,PT-60,PT-90,PT-200 or according to customer requirement
About The Packing, We Can According To Customers' Requirement!

Test of Main technical

The following is mian technical test;The set standards according to customers’ requirement. Besides,We Providing OEM,Please pay attention to that.

Item	Requirement of the standards
Stardards	GB/T6109/ IEC60317-0-1 GB/T23312/ IEC60317-0-3 MW76-A/ MW35-A
Electrical resistivity	0.017241/0.02785 Ω mm²/m
Breakdown voltage	2500/5000V
Heat shock	The minimum Heat shock temperature 200,220,240℃
Resistance to solvents	Standard solvent.Use a pencil of hardness”2H”the coating shall not be removed
Cut Through	320,360,400℃, 2mins not break down
