Enameled Flat(Rectangular) Aluminum Wire

We're here to help:Easy ways to get the answers you need.

Send e-mail Get Price

Production Process: Extrude & Draw Stretch the Thread Ultrasonic Clean; Panit Toast Spool

enameled flat aluminum wire

Size: a:1-10mm b: 3-16mm
Thermal Class:155,180,200,220

Main Products:: Class 155 Polyester Enameled Flat（Rectangular) Aluminum Wire; Class 180 Polyesterimide/Polyamide Enameled Aluminum Flat（Rectangular）Wire; Class 200 Modified Polyesterimide Enameled Aluminum Flat（Rectangular）Wire; Class 200 Polyamide-imide Enameled Aluminum Flat（Rectangular）Wire; Class 220 Polyesterimide Enameled Aluminum Wire

Other Names:: Enameled Aluminum Winding Wires; Enamel Insulated Aluminum Wire; Double Enameled Aluminum Wire

Production Characteristics

1, Our Enameled Flat（Rectangular）Aluminum Wire has good heat resistance, high solvent resistance and excellent hydrolytic resistance.
2.Our Enameled Flat（Rectangular）Aluminum Wire has good corrosion resistance, good scuff resistance, excellent flexibility and adhesion.
3, Our Enameled Flat（Rectangular）Aluminum Wire has good conductivity and smooth surface processed by advanced extrusion equipments.
4, Our Enameled Flat（Rectangular）Aluminum Wire’s temperature class can reach more than 240.
Insulation: ELANTAS
Intelligent on-line monitoring equipment

Application: The Application Of enameled flat（Rectangular）aluminum wire
Typical application include:
Dry transformers/ Special transformers/Welding machines/Rectifiers /Reactors/Other large and low-voltage electromagnetic windings

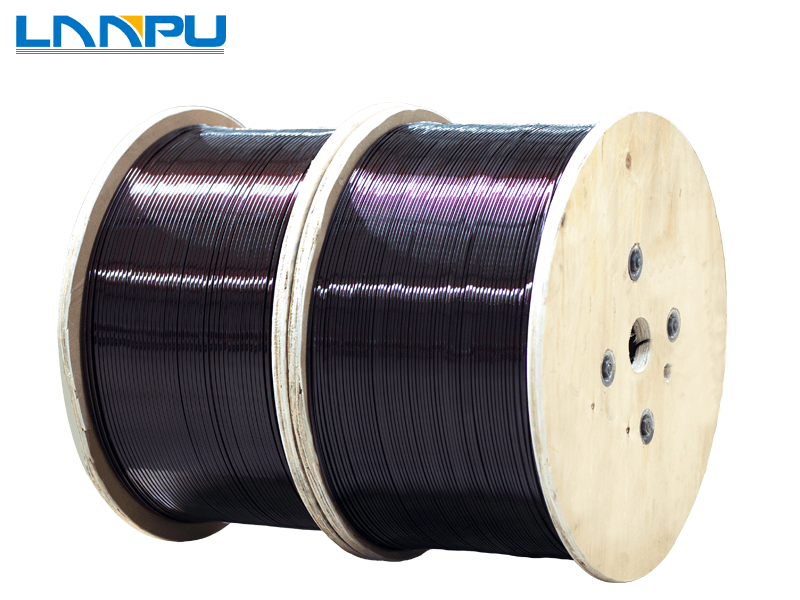

Packing: Plastic spool or wooden spool, flat（Rectangular）wire length are customizable;
The usual spool specifications :
30kg/50kg Wooden Bobbin or according to customer requirements.
About The Packing, We Can According To Customers' Requirement!

Test of Main technical:

The following is mian technical test;The set standards according to customers’ requirement. Besides,We Providing OEM,Please pay attention to that.

Item	Requirement of the standards
Stardards	IB/T7095IEC60317-0-2 MW36--A MW36--C
Electrical resistivity	0.0172410/02785Ω mm²/m
Breakdown voltage	0ver 1000v/2000V
Heat shock	200/220/240 C insulation film no cracking
Resistance to solvents	Standard solvent.Use a pencil of hardness”2H”the coating shall not be removed
Cut Through	320,360,400℃, 2mins not break down
